Hand wiring the Atreus - a step into open source hardware


The Atreus is a mechanical keyboard designed primarily to match the shape of human hands and to be as portable as possible. It consists of 42 keys in a columnar layout and has ergonomic features similar to the Ergodox, without the split aspect and scaled down in size. These traits caught my interest for traveling so I decided to build one. I opted to hand wire my keyboard matrix as I feel that it's a bit more satisfying than populating a printed circuit board. This is my venture into the open source keyboard project by Phil Hagelberg (@technomancy) documented on github.

Bill of materials

Case
Teensy 2.0
Switches (37 Cherry MX Clears, 5 Cherry MX blacks)
DSA profile keycaps (40 1x, 2 1.5x)
42 1N4148 diodes
Mini USB breakout board
Mini USB cable
Insulated copper wire
M3 machine screws and nuts

Case's bottom layer, switch plate and top layer after a few coats of satin polyurethane to protect the raw birch
Switch plate fully populated - Cherry MX Clears are used for alphas and Cherry MX Blacks are used for modifiers
Switches were then hot glued to the switch plate for additional support
Negative ends of the diodes soldered to the top left row of switches
Positive ends of the diodes soldered in parallel (positive to positive of the next diode in the row) to create the first row
Left side rows complete
Right side rows complete
Progress on the left side columns

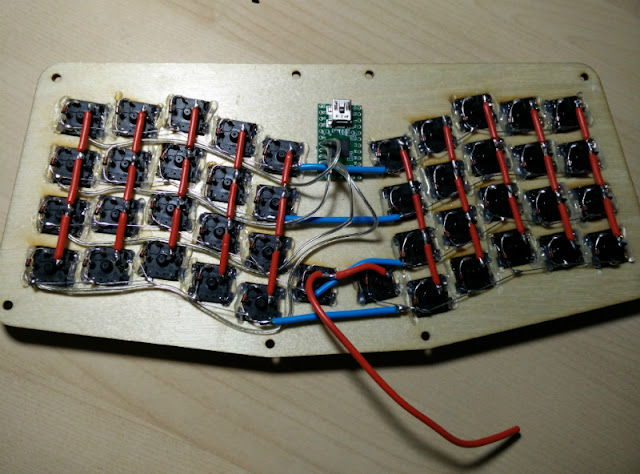

Left side columns and left to right rows connected (staying positive end to positive end of the next diode in the row)
This tool helped drastically in cutting off the insulation for the column wires in the correct places
Matrix completed - the center switches are one column but members of the bottom two rows
Rows wired to the Teensy
Columns wired to the Teensy. I put together a mini USB to mini USB breakout board because I wanted a slimmer profile for the case, this allowed for omitting a layer of the wooden spacers. This also let me upgrade from an integrated cable to a detachable mini USB cable which helps make the keyboard travel a bit more elegantly.
After compiling the firmware and writing the hex file to the Teensy the Atreus is fully functional.

3 comments:

  1. Really nice build!! Inspiring :)
    I'm deliberating between a PCB or hand-wiring... I don't have a ton of soldering experience (though I could practice) but more than that, I'm concerned about stability/flimsiness, so I'm wondering - does the hot-gluing provide a solid feel? So far my favorite keyboard is a 60% mounted on metal: super stiff. maybe i'm ruined now :D

    ReplyDelete
    Replies
    1. Thank you!

      My recommendation towards hand-wiring or PCB would really depend on what you want out of your keyboard.

      Hot glue is only really necessary if you are working with switch plate that is thicker than 1.5mm, as with anything thicker than that the switches will not "click" into place. The hot glue prevents the switches from riding up from the plate when you are removing keycaps.

      This is the first wooden case I have worked with but it is very solid and there isn't any noticeable flex, I believe due to the layered design.
